• Capacity: 120GB,128GB,240GB,256GB,480GB,512GB,960GB,1TB,2TB
• 1G~8Gbits Internal Cache

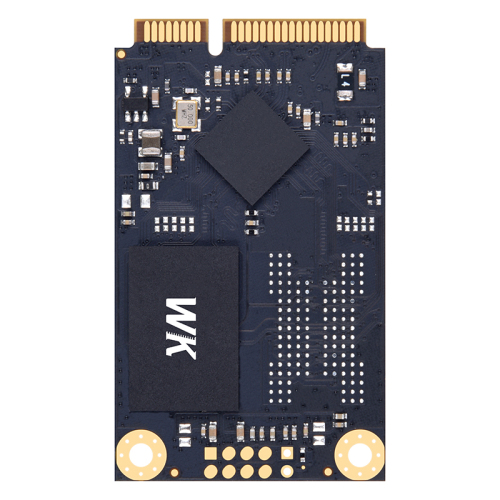

• Form Factor: mSATA
• Supports 1-port1.5/3.0/6.0Gbps SATA I/II/III interface.
• SMART feature set and48-bit Address feature set
• Compatibility: Full SATA hard disk compatible
• Ultra rugged and reliable
• High-speed performance
• Silent, no moving parts
• Data retention: JESD47 compliant
• Proprietary wear leveling algorithms
• 100% tested hardware and software
• Data Retention: JESD47 compliant
• Wear Leveling: Static and dynamic wear-leveling algorithm.
• Bad Block Management: Failed Blocks of Flash will be replaced with new ones by the SSD.
• ECC/EDC (Error Correction Code/Error Detection Code):
-Hardware ECC engine: LDCPECC engine On-the-fly operation
16bitCRC to ensure storage-data integrity between controller and NAND Flash device
• MTBF: >1,000,000hours
• Power Cycle:1000times
• Operating Voltage Requirement: Vcc=3.3V +/-10%
