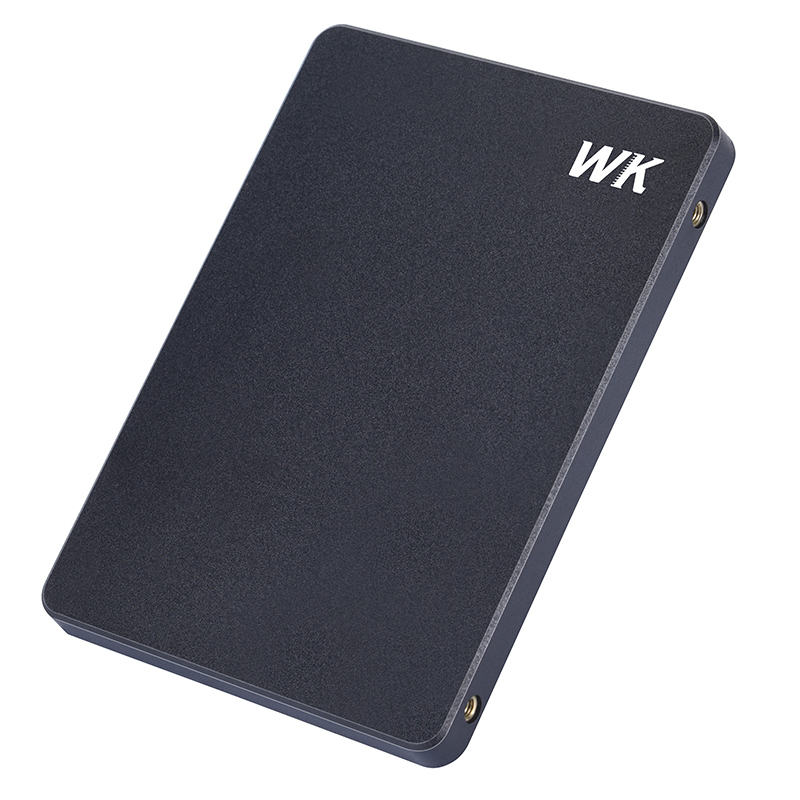

• Model: WK2.5SSD
• Capacity: 120GB,128GB,240GB,256GB,480GB,512GB,960GB,1TB,2TB, 4TB
• 1G~8G bits Internal Cache
• Form Factor: 2.5” (HDD compatible)
• Supports 1-port 1.5/3.0/6.0Gbps SATA I/II/III interface.
• SMART feature set and 48-bit Address feature set
• Compatibility: Full SATA hard disk compatible
• Ultra rugged and reliable
• High-speed performance
• Silent, no moving parts
• Data retention: JESD47 compliant
• Proprietary wear leveling algorithms
• 100% tested hardware and software
• Data Retention: JESD47 compliant
• Wear Leveling: Static and dynamic wear-leveling algorithm.
• Bad Block Management: Failed Blocks of Flash will be replaced with new ones by the SSD.
• ECC/EDC (Error Correction Code/Error Detection Code):
-Hardware ECC engine: LDCP ECC engine On-the-fly operation 16bit CRC to ensure storage-data integrity between controller and NAND Flash device
• MTBF: >1,000,000 hours
• Power Cycle: 1000 times
• Operating Voltage: Vcc =5.3V±10%
